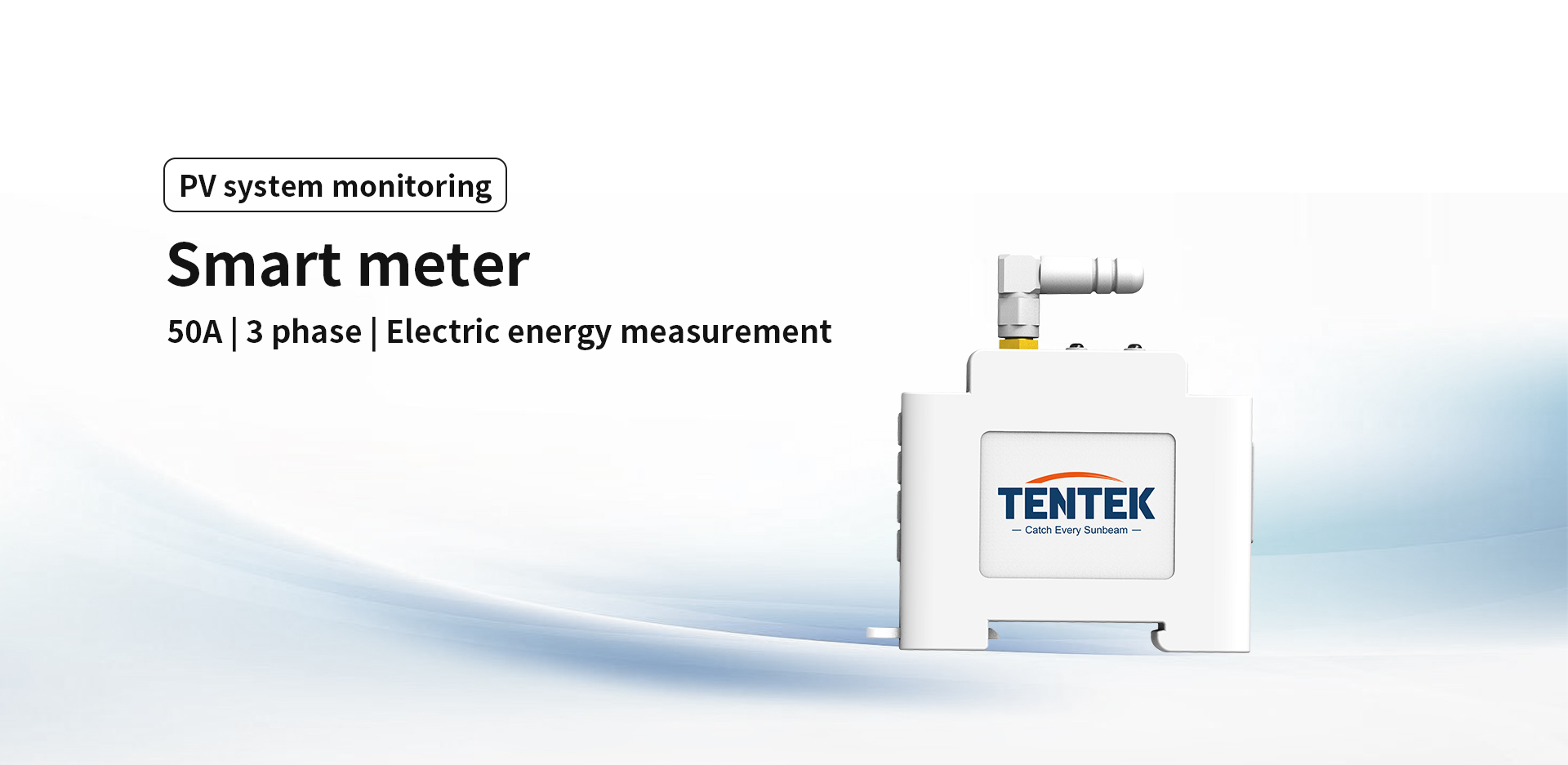

EM-3PW50A Smart Meter
EM-3PW50A is TENTEK latest developed 3 phase energy monitor, which is one of the accessories of our microinverter energy storage system. Its function is to match TENTEK microinverter energy storage system to realize automatic zero-feed control in the system.
EM-3PW50A Smart Meter
● Real-time monitoring of power usage and provision of accurate power usage data
● With data analysis and reporting functions to help users optimise energy management strategies and improve energy efficiency
● Remote adjustment of power supply to improve the operational flexibility of the power system.
● Works with other energy management devices for more comprehensive energy management and optimisation
● Simple installation, easy maintenance, and reduced system costs
● Strictly tested to ensure stable and reliable performance for long time operation
EM-3PW50A | |
Power | |
Products | Energy Monitor |
| Model NO. | EM-3PW50A |
| Monitor Phase | 3phase |
| Wi-Fi | 802.11 B/G/N20/N40 |
| RF Characteristics | Operating frequency: 2.4GHz |
| BLE | BLE4.2 / 2.4G MHz |
| Power Source | 100-240Vac 50/60Hz |
| Calibrated Metering Accuracy | Within ±2% |
| CT Provided | CT 50A (default) |
| Power Source | Hardwired |
| Operating Temperature | -20℃~ +55 ℃ |
| Operating Humidity | ≤80%non-condensing |
| Dimension | 62(D) x 81.2(H) x 19(T) mm |
| Weight | 220g(include 3 Conductors ) |
| Certification | CE & ROHS |
